ビームムービングヘッドライト
Created with Pixso.

500W Modular LED Moving Head Light with 540° Pan and 270° Tilt Movement for Professional Stage Lighting

500W Modular LED Moving Head Light with 540° Pan and 270° Tilt Movement for Professional Stage Lighting

ブランド名: Wincode Optronics
MOQ: 2
価格: $830-885
詳細情報
起源の場所:
中国広州
色温度:
5000K
IP等級:
IP20
入力電圧:
AC110-220V
光源:
モジュール式500W LED
定格電力:
600W
製品の重量:
23kg
使用温度:
-10〜40°C
制御モード:
DMX512/マスタースレーブ/オートラン/サウンド/RDM
ズームアングル:
6度から48度
シャッター羽根:
4 個別に配置可能
パンレンジ:
540° (16ビット)
傾斜範囲:
270° (16ビット)
暗くするシステム:
0~100%直線調節可能
集中の範囲:
4m~50m
製品サイズ:
380*270*670mm
ハイライト:

500W Modular LED Moving Head Light

,

540° Pan Movement Moving Head Light

,

270° Tilt Movement Moving Head Light

製品説明

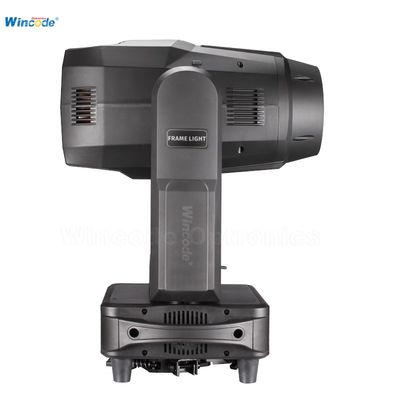

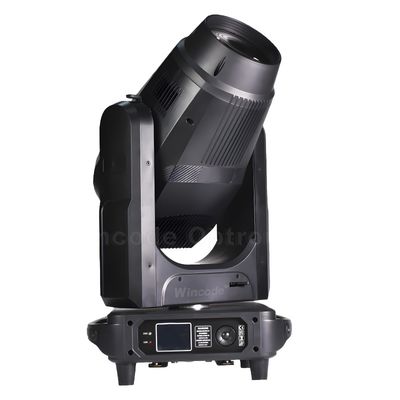

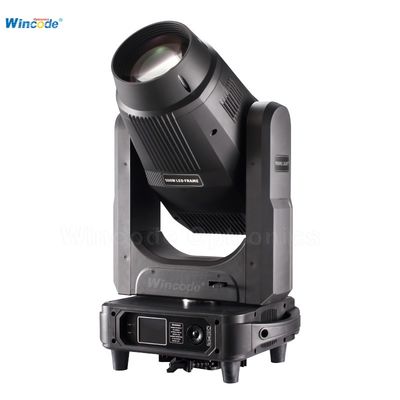

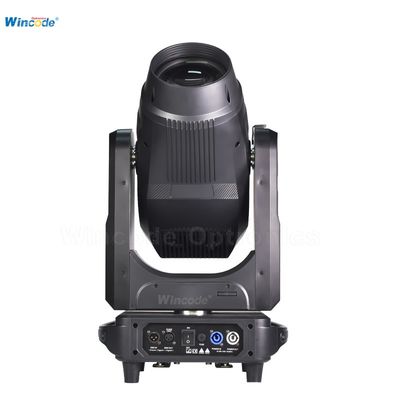

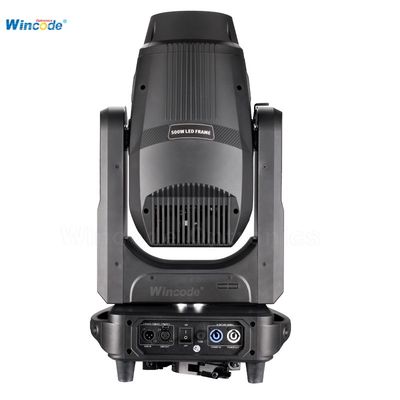

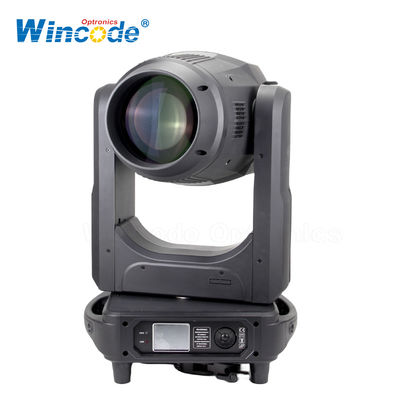

Wincode Optronics Theater Concert Pro Stage Light 500W Cutting Framing Profile LED Moving Head
500W Modular LED Moving Head Light with 540° Pan and 270° Tilt Movement for Professional Stage Lighting 0 500W Modular LED Moving Head Light with 540° Pan and 270° Tilt Movement for Professional Stage Lighting 1
Product Name Wincode Optronics Theater Concert Pro Stage Light 500W Modular LED Cutting Framing Profile Moving Head
Input voltage AC110V-240V/50-60HZ
Light source Modular LED 450W
Light Source Life 20000 hours
Rated Power 600W
Channel Mode 26 Channels
Pan 540° (16bit precision scanning)
Tilt 270° (16bit precision scanning)
Dimming System 0~100% linear adjustable
Focusing System Linear adjustment from 4 meters to 50 meters
Frost System 1 independent frost effect, soft and natural lighting spot
Zoom Angle 6 degree to 48 degree
Framing System 4 Individually positionable Shutter Blades, each piece can be closed separately and can be rotated +/-900
Colors 6 colors and white, with half color function
Color Mixing System Linear CMY mixing system
Macro Function Console reset function, self-propelled mode, master-slave mode
Display Mode LCD display, button + touch dual operation mode
Control Signal International standard DMX512, RDM, on-line software upgrade available, dial address code
Safety settings Electronic temperature control overheating protection, automatic power-off protection when overheating system fails. Product appearance: flame retardant, high temperature resistance
Working environment -20°C to 40°C
Protection level IP20
Net Weight 23KG
Product Size 380*270*670mm (L*W*H)
500W Modular LED Moving Head Light with 540° Pan and 270° Tilt Movement for Professional Stage Lighting 2 500W Modular LED Moving Head Light with 540° Pan and 270° Tilt Movement for Professional Stage Lighting 3
Product Highlights

WOP-LM500WF adopts modular LED light source with high power of ultra bright 500W, specially designed to be professional framing profile moving head with both hardware and software. Features high brightness, smoother framing and ultra pure color mixing.

500W Modular LED Moving Head Light with 540° Pan and 270° Tilt Movement for Professional Stage Lighting 4 500W Modular LED Moving Head Light with 540° Pan and 270° Tilt Movement for Professional Stage Lighting 5 500W Modular LED Moving Head Light with 540° Pan and 270° Tilt Movement for Professional Stage Lighting 6 500W Modular LED Moving Head Light with 540° Pan and 270° Tilt Movement for Professional Stage Lighting 7 500W Modular LED Moving Head Light with 540° Pan and 270° Tilt Movement for Professional Stage Lighting 8 500W Modular LED Moving Head Light with 540° Pan and 270° Tilt Movement for Professional Stage Lighting 9
Project Applications

Tour show, concert, fashion show, wedding party, event hall, disco club, outdoor show, conference events and other entertainment occasions.

500W Modular LED Moving Head Light with 540° Pan and 270° Tilt Movement for Professional Stage Lighting 10 500W Modular LED Moving Head Light with 540° Pan and 270° Tilt Movement for Professional Stage Lighting 11 500W Modular LED Moving Head Light with 540° Pan and 270° Tilt Movement for Professional Stage Lighting 12 500W Modular LED Moving Head Light with 540° Pan and 270° Tilt Movement for Professional Stage Lighting 13
Our Advantages
  • Support ODM & OEM & RTS
  • Appearance Designs: concept design → Sketch → Color → 3D Modeling → Rendering
  • Structure Designs: Pro/E → Parts → assembly drawing → Prototype
  • Software Design
  • Integrated Circuit Design
  • 100% inspection before packing
  • 0 complaint in Alibaba order for 15 years
  • 15 years' experience in making stage lighting
Company Introduction

Professional Moving Head Light Supplier - Wincode Optronics

Guangzhou Wincode Optronics Co., Limited is a professional OEM, ODM, OBM manufacturer and exporter specializing in manufacturing and marketing various stage lights, PRO Lights, Architectural Lights, and Commercial Lights. With extensive experience and strict ISO9001 international standards.

We are running our own brand "Wincode Optronics" in the global market for lighting. Our products are suitable for various entertainment and recreation places, such as theatre, TV showroom, multimedia hall, square show, organ hall, recreational city, Disco club, Bar, KTV and more.
